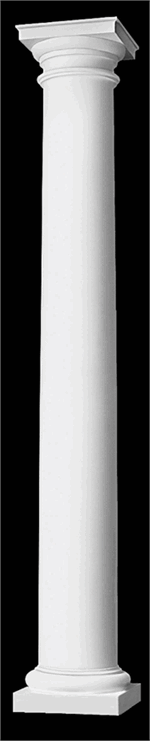

MATERIAL AND MANUFACTURING PROCESS: Shaft composed of paint-grade, finger-jointed poplar or equal (other species available upon request). Each column is made to your exact specifications.
LOWER/BOTTOM DIAMETER: 8"
UPPER/TOP DIAMETER: 6 1/2"
OVERALL HEIGHT: 8'-0"
STAVE THICKNESS: 2" before turning (1 1/2" +/- after).
ACCEPTABLE TOLERANCE: 1/8"
SHAFT WEIGHT: 37 lbs.
LOAD-BEARING CAPACITY: 6,000 lbs.
CAPITAL:
Greek Corinthian (Temple of Winds) made of load-bearing poly resin.
Measurements: 6 3/4" diameter x 7 1/2" height x 10 1/2" width at abacus.
BASE/PLINTH:
Attic (Ionic) base/plinth made of lightweight polyurethane (other materials available for an upcharge). See spec sheet for dimensions.
FLEXIBILITY: Can be split and tabbed for reassembly. Client will determine exact overall height, and shaft will have proper 1/3, 2/3 taper/entasis. Other wood species available upon request (may result in higher cost). A variety of decorative capitals can be used with this column.
SHIPPING: Boxing, collaring and crating available.
RESTOCKING: No. All Authentic Replication columns are made to order, and therefore cannot be returned.
DESIGN AND INSTALLATION:
CAD (.dwg and .dxf) drawings available online or by request.
PDF files available online or by request.
Installation instructions available online, or via fax and email by request.
Finishing and painting instructions available.
Application photos available at www.columnphotos.com
