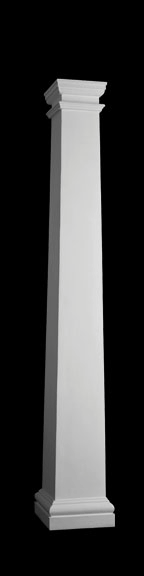

Design #200-ST - PolyStone® - Tuscan capital and base - 10" x 5'6"
MSRP: $343.98
Price: $309.59
You Save: $34.39
|
Item Number: 10056-PSPLTP-E-TSC-2
To complete your order, call for a freight estimate.
|
SHAFT:
PolyStone® column shaft made of polyester resin, fiberglass and marble dust. Column shaft is plain/smooth with a continuous taper. Shaft can be cut to your desired overall height, from bottom of shaft only. Note that if a significant portion of the shaft is removed, additional caulking will be required to fill gap between shaft and base/plinth.
CAPITAL, BASE MOLDING, PLINTH AND ASTRAGAL:
Tuscan capital, base molding, plinth and astragal included (polyurethane). Please note that components are designed to wrap around the shaft as decorative sleeves – they do not add height. Astragal is separate, to be applied in field.
|
LOWER/BOTTOM DIAMETER: 9 1/2”
UPPER/TOP DIAMETER: 7 1/2"
OVERALL HEIGHT: 5’-6"
WALL THICKNESS: 1/4” – 5/8”
INTERIOR ROUND CLEARANCE: 3 3/4”
ACCEPTABLE TOLERANCE: 1/8”
SHAFT WEIGHT: 135 lbs
LOAD-BEARING CAPACITY: 13,990 lbs.
FIRE RATING: Class A; Type 1
|
FLEXIBILITY:
• Splitting for reassembly and/or custom shapes.
• Cutting to overall length available
• Changeable capitals, bases and plinths
SHIPPING:
• Boxing, collaring, and crating available
RESTOCKING:
• Yes, excluding altered product
• Fee will be applied
DESIGN AND INSTALLATION:
• CAD (.dwg and .dxf) drawings available online or by request
• PDF files available online or by request
• Installation instructions available online, via fax, or email by request
• Finishing and painting instructions available
• Application photos available http://www.columnsphoto.com
WARRANTY:
• For the life of the original installation
|
|
|
