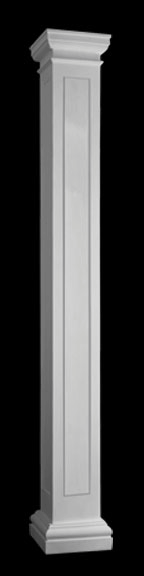

Design #203 - PolyStone® - Tuscan capital and base - 8" x 8'-0"
MSRP: $357.80
Price: $322.02
You Save: $35.78
|
Item Number: 0808-PSPNRCNTE-TSC-5
To complete your order, call for a freight estimate.
|
SHAFT:
PolyStone column shaft made of polyester resin, fiberglass and marble dust. Column shaft has simple recessed panels (no cove detail from flat face to recessed panel) and NON-tapered (shaft is the same width from top to bottom). Shaft can be cut to your desired overall height, from bottom of shaft only. At full height, recessed panel stops 10 3/4" from top of Tuscan base/plinth.
CAPITAL, BASE MOLDING, PLINTH AND ASTRAGAL:
Tuscan capital, base molding, plinth and astragal included (polyurethane). Please note that components are designed to wrap around the shaft as decorative sleeves – they do not add height. Astragal is separate, to be applied in field.
|
LOWER/BOTTOM DIAMETER: 7 1/2”
UPPER/TOP DIAMETER: 7 1/2"
OVERALL HEIGHT: 8’-0"
WALL THICKNESS: 1/4" - 5/8”
INTERIOR ROUND CLEARANCE: 4”
ACCEPTABLE TOLERANCE: 1/8”
SHAFT WEIGHT: 129 lbs
LOAD-BEARING CAPACITY: 10,500 lbs.
FIRE RATING: Class A; Type 1
|
FLEXIBILITY:
• Splitting for reassembly and/or custom shapes.
• Cutting to overall length available
• Changeable capitals, bases and plinths
SHIPPING:
• Boxing, collaring, and crating available
RESTOCKING:
• Yes, excluding altered product
• Fee will be applied
DESIGN AND INSTALLATION:
• CAD (.dwg and .dxf) drawings available online or by request
• PDF files available online or by request
• Installation instructions available online, via fax, or email by request
• Finishing and painting instructions available
• Application photos available http://www.columnsphoto.com
WARRANTY:
• For the life of the original installation
|
|
|
