Home > Columns > Design #201 - PolyStone® - Tuscan capital and base - 10" x 12'-0"

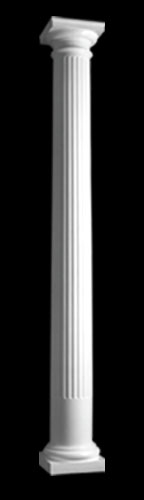

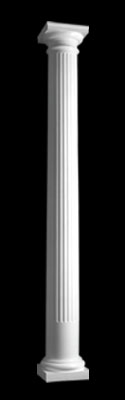

Design #201 - PolyStone® - Tuscan capital and base - 10" x 12'-0"
MSRP: $465.08
Price: $418.57
You Save: $46.51
|
Item Number: 1012-PSXFLTP-A-2
To complete your order, call for a freight estimate.
|
|
SHAFT:
PolyStone®column shaft made of polyester resin, fiberglass and marble dust. Column shaft features 24 Ionic flutes and classic taper (bottom third of the shaft is straight, with the remaining 2/3 tapering to the neck). At full height, there is 10 3/4" of smooth shaft between the bottom of the flutes and the top of the Tuscan base molding. Shaft can be cut down to your desired overall height (cut from the bottom of the shaft only). If more than 10 3/4" is removed, flutes will run into base molding. Classic astragal (bead) molded onto shaft.
CAPITAL, BASE MOLDING AND PLINTH:
Tuscan capital, base molding and plinth included (polyurethane). Please note that components are designed to wrap around the shaft as decorative sleeves – they do not add height.
|
LOWER/BOTTOM DIAMETER: 9 5/8”
UPPER/TOP DIAMETER: 8 1/2"
OVERALL HEIGHT: 12’-0"
WALL THICKNESS: 1/4”
INTERIOR ROUND CLEARANCE: 6 7/8”
ACCEPTABLE TOLERANCE: 1/8”
SHAFT WEIGHT: 134 lbs
LOAD-BEARING CAPACITY: 13,990 lbs.
FIRE RATING: Class A; Type 1
|
FLEXIBILITY:
•Tabbing of column for reassembly
•Cutting to specific overall length available
•Interchangeable capitals, bases and plinths
SHIPPING:
•Quick Ship available on some sizes
•Boxing, collaring, and crating available
RESTOCKING:
•Yes, excluding custom and altered product
•Fee will be applied
DESIGN AND INSTALLATION:
•CAD (.dwg and .dxf) drawings available online or by request
• PDF files available online or by request
• Installation instructions available online, via fax, or email by request
• Finishing and painting instructions available
WARRANTY:
• For the life of the original installation
|
|
|
|
