MATERIAL AND MANUFACTURING PROCESS: Composed of polyester resin, fiberglass and marble dust trix-spun-cast in existing molds. Custom molds can be created for unique specifications.
LOWER/BOTTOM DIAMETER: 7 5/8"
UPPER/TOP DIAMETER: 6 1/2"
OVERALL HEIGHT: 8’-0"
WALL THICKNESS: 1/4”
ACCEPTABLE TOLERANCE: 1/8”
SHAFT WEIGHT: 58 lbs
LOAD-BEARING CAPACITY: 10,000 lbs
FIRE RATING: Class A; Type 1
CAPITAL:

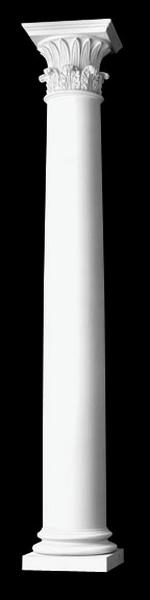

Greek Corinthian measuring 6 3/4" diameter x 7 1/2" height x 10 1/2" width at abacus. Made of paint-grade, load-bearing poly resin.
FLEXIBILITY:
•Splitting for reassembly
•Cutting to overall length available
SHIPPING:
•Boxing, collaring, and crating available
RESTOCKING:
•Capital and base only - not shaft
•Fee will be applied
DESIGN AND INSTALLATION:
•CAD (.dwg and .dxf) drawings available online or by request
• PDF files available online or by request
• Installation instructions available online, via fax, or email by request
• Finishing and painting instructions available
• Application photos available: http://www.columnphotos.com
WARRANTY:
• For the life of the original installation
